Rain Water Harvesting - The Design

Surface Run Out To Be Stored & Recharged

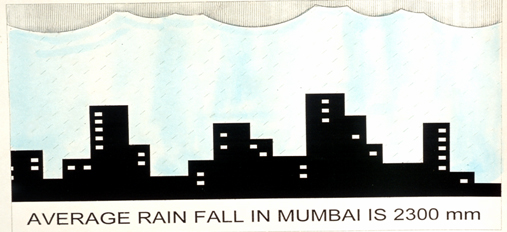

The Average Rainfall In Mumbai Is 2300mm

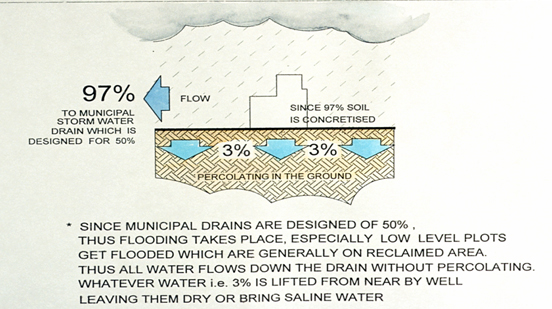

  • Since Municipal Drains Are Designed Of 50 %, Thus Flooding Takes Place, Especially Low Level Plots Get Flooded Which Are Generally On Reclaimed Area.
  • Thus All Water Flows Down The Drain Without Percolating Whatever Water I.E. 3 % Is Lifted From Near By Well Leaving Them Dry Or Bring Saline Water

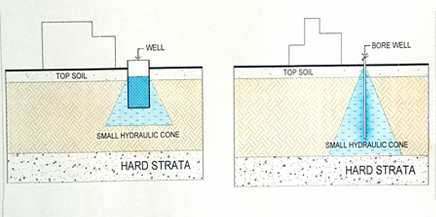

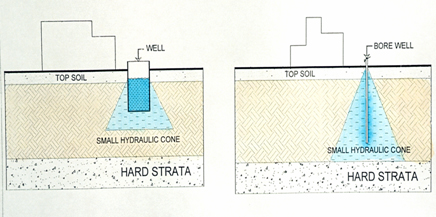

Ground Water Recharging

  • Necessary To Do The Geologial Survey & By Test To Find Out The Level Of   Non Permiable Strata.

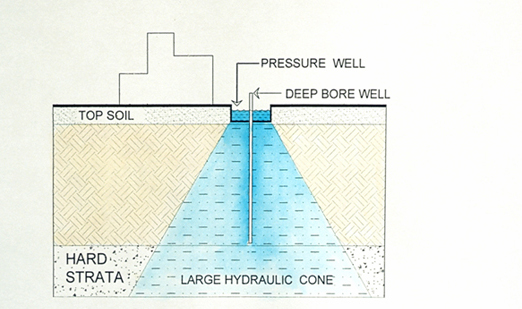

  • Solution – Clean / Refill / Recharge / Existing Aquifers.

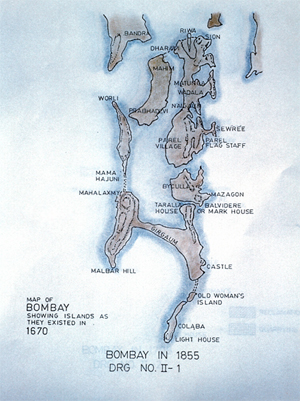

Bombay In 1855

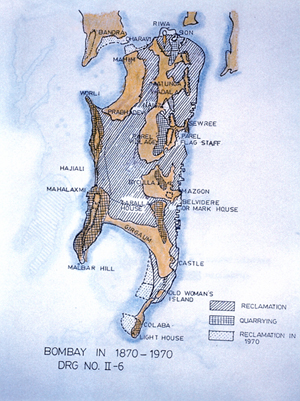

Bombay In 1870 - 1970

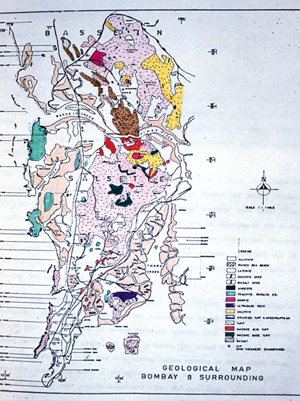

Geological Map – Bombay And Surroundings
